FSP Windale 6 CPU cooler, They make more than just PSUs 0 1510

FSP is a tech company known for their power supplies.  Their quality and attention to detail, make their power supplies some of the best in the business.  FSP also makes PC components other than power supplies.  Today we will take a closer look at the FSP Windale 6 CPU cooler, which retails for $44-48 USD.

Key Features:


CPU Direct Contact: Six heat pipes directly contact with CPU – 100% copper heat pipes are touched on the base which creates a large thermal area and speeds up the heat conduction from the CPU to the heatsink.

Best Air Flow with Fin Design: Each cooling fin of Windale 6 is shaped four rectangular holes which can increase the surface area for contacting the heat.  With this design, the inside air flow becomes more smoothly and heat emission process comes more quickly.

Optimized Fin Design: Windale 6 is featured with unique surface treatment specifically designed to keep heat away from its source rapidly.  120mm fin design provides optimized cooling effect, also enhances the speed of heat dissipation.

Windale Series Get Ready for AMD Ryzen and Intel Kaby Lake: The Windale 6 comes with a mounting solution that allows it to be compatible with most sockets.

Best Performance and Silent Fan: With paragliding blade design, the fan keep airflow over key components more efficiently and decreases noise.

Stable Anti-Vibration Rubber: Flexible and soft anti-vibration rubber is easy to assemble.  Windale 6 provides a better connection to minimize movement and noise between fan and heatsink.

Easy Installation for Intel and AMD CPUs:  Windale 6 equipped with multiple clips to support installation.  Universal mounting bracket is compatible with both sockets of Intel and AMD.

Specifications:

Dimensions (W x H x D): 122mm x 110mm x 165mm
Weight: 1.81 lbs or 823 grams
Thermal Resistance: 0.09ºC/W
Heat-pipes: Direct Touch 6 x 6mm
Material: Aluminum with Black Plating
Maximum Cooling Capacity: 240 W
Fan Dimensions (W x H x D): 120mm x 120mm x 25mm
Speed: 1000-1600 rpm
Bearing Type: Sleeve Bearing
Air Flow: 60 CFM
Noise Level: 32 dBA
Connector: PWM, 4-pin White LED
Compatibility: Intel Sockets: 775, 115X, 1366, 2066, 2011  AMD: AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1

Unboxing

As we take a closer look at the box, you are greeted with a nice blue and black color scheme on the box.  The front of the box has a nice picture of the Windale 6 and some literature.

On the left side of the box you have more literature and then also a chart with the efficiency curve and also displayed is that this cooler is capable of dissipating heat up to 240w tdp.

The back of the box displays the specifications for the cooler.

When we open the box, you notice that the cooler is packaged with the fan attached to the cooler.  The accessories box is also placed in the box.

Inside the accessories box you will find all the screws, rubber isolators and the mounting bracket to be able to mount this cooler to any mainstream AMD or Intel CPU socket.

A Closer Look

Right off the back looking at the FSP Windale 6, you notice right away that they had aesthetics in mind and the cooler has a black paint job on the cooler fins.

The 120mm fan is a black outer shroud and the fan is a grey color.  Overall this is a great aesthetic and I believe it could compliment almost any build.

At the top of you cooler you can see that FSP had the right level of detail to paint the heatpipes all the way down to the cold plate, where they make direct contact with the CPU heat spreader.  The Fins have a nice design and you also notice that the many fins will help disapate the heat that is collected by the heat pipes.

The fan is secured to the cooler via rubber isolators.  I like this approach because it is far easier than the typical metal clips,it looks asethically pleasing and dampens an vibrations from the fan.

Lastly, the 120 mm fan does have an LED, which is white. While I wish that FSP could have used an RGB fan, a white LED fan is not distracting and could fit almost any build color scheme.  You also have the option of disabling the LED if the white clashes with your scheme.

Testing System and Installation

Processor: AMD Ryzen 5 2400g
Motherboard: Gigabyte AB350N Wifi ITX
Graphics Card: Onboard Vega 11 Graphics
Memory: 16gb Gskill Flare X 3200mhz
Storage: 240g Samsung 850 Evo ssd
Power Supply: XFX TS 750w
Case:  Cooler Master HAF Evo XB Test Bench

Tests:

Idle Temps: The temperature is recorded after 5 minutes of idle

Metro LL Benchmark (Very High, AF 16X, No AA, PhysX dis):  This is looped into 3 consecutive runs and the highest temperature is recorded

ROG Realbench 15 min Stress Test:  This test is accomplished to put a realistic load on the CPU/GPU.  It runs LuxMark and Handbrake to stress the CPU, cache, GPU and RAM of your system.

Ashes of the Singularity CPU Test:  The CPU test is used to place a great gaming load on the CPU with lots of calculations being made with the many units on the screen during the test.

Rise of the Tomb Raider:  This game is less demanding on the CPU and more demanding on the GPU but is a great title to benchmark game performance.

Cinebench R15:  This is a great CPU test to use all of the threads on your processor.

Installation

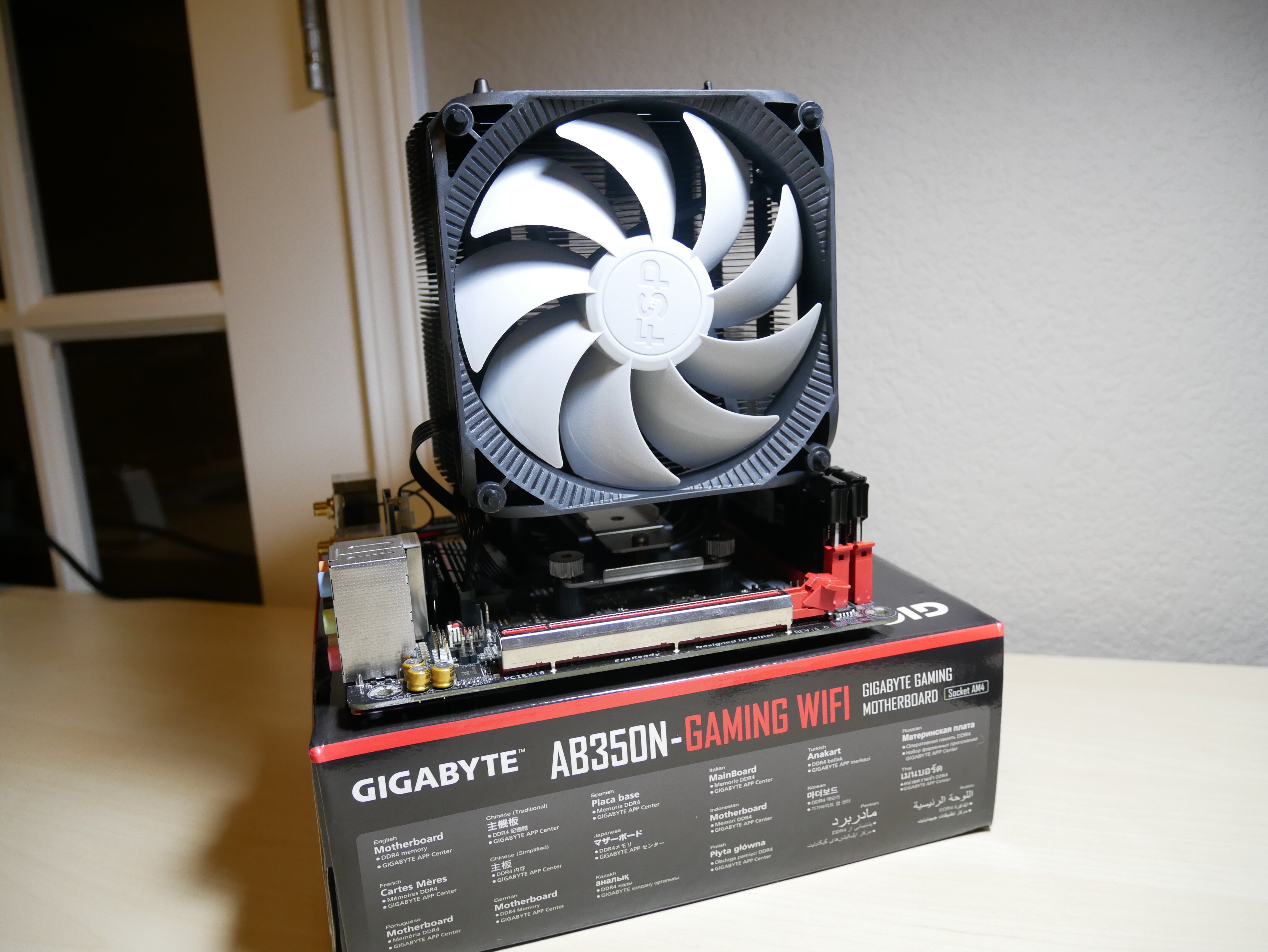

Installation of the Windale 6 was fairly straight forward.  The directions were easy to read and understand.

First you start by inserting the four long screws into the back of the backplate.

Next you thread the bolts through the holes in your motherboard.

Next you secure the backplate by screwing four black plastic retaining pillars.

After that, you use four silver screw heads to secure the socket mounting brackets to the pillars.  Lastly, You use the crossbar and two small screws to attach the CPU cooler to the mounting brackets.

While their are several steps with the mounting hardware, this allows FSP to allow the CPU cooler to be compatible with many sockets.

Performance

The following are what I believe to be a great group of real world representative tests to be able to stress the CPU and integrated Vega GPU and lastly the CPU cooler that is attached.  The ambient temperature of the room during testing is 20 C.  The testing was conducted with the 2400g stock settings, an Overclock of 3.9 Ghz on the CPU, an Overclock of 1500 Mhz on the GPU and lastly both the CPU and GPU Overclocked.  During testing the hottest package temperature is recorded.

System Idle (after 5 min of Power On)

The FSP Windale 6 was able to keep the 2400g at 26 C and below during idle in all test variations of idle.  This is an improvement over the wraith stealth as it was only able to keep the 2400g at 26-28 C in all test variations of idle.

Metro Last Light (Very High, AF 16X, No AA, PhysX Disabled (3 runs)

When testing Metro Last Light you can see that the FSP Windale able to hold its own, keeping the 2400g overclocked on both the CPU and GPU at bay with a temperature of 50.3 C.

15 minutes of ROG Realbench Stress Test

A similar story for Realbench, the Wraith Stealth had consistent temps in the 80’s C, while the Windale 6 was no higher than 76 C.

Ashes of the Singularity (CPU Test)

For a game that is primarily used as a benchmark, the Windale was able to keep the 2400g (1500 mhz on  the GPU) at a lower 65 C, compared to 75.1 C with the Wraith Stealth.

Rise of the Tomb Raider Benchmark

For Rise of the Tomb Raider, the Windale 6 was able to improve upon stock temps by 18.5 C.

Cinebench R15 (3 consecutive runs)

During testing of Cinebench R15, the Wraith Stealth allowed the 2400g (GPU 1500 mhz overclock) to climb to a toasty 93 C after one run.  The Windale 6 under the same overclock was able to maintain a maximum of 74.1 C after three runs.

PROS:

  • Compatible with all sockets
  • 6 heat-pipe design
  • Black Cooler Aesthetic
  • Easy Fan mounting
  • Cooler Design allows great cooling capability
  • The White LED is subtle (can be turned off if it clashes with your build)

CONS:

  • Fan mount is difficult to reuse if you cut ends for a clean look (FSP provides two sets)




9.7 out of 10
Bottom Line For a CPU cooler that comes in at around $45, the FSP Windale is a great candidate for users who want cool temperatures, great aesthetics from a company that is one of the best quality PSUs manufactures.
